CAT25010 - SPI Serial CMOS EEPROM

Name: CAT25010
SKU: CAT25010-746320

ON Semiconductor

📥 Download Datasheet

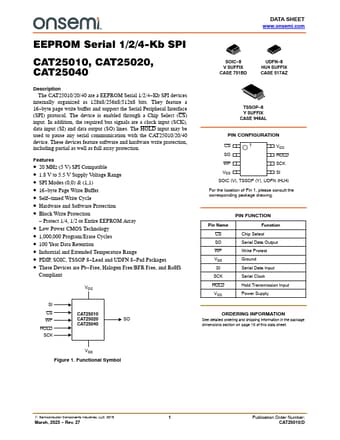

CAT25010 Datasheet Preview — Preview of CAT25010 PDF

Datasheet Details

Part number	CAT25010
Manufacturer	ON Semiconductor
File Size	358.06 KB
Description	SPI Serial CMOS EEPROM
Datasheet	CAT25010_ONSemiconductor.pdf

CAT25010 Product details

Description

The CAT25010/20/40 are a EEPROM Serial 1/2/4 Kb SPI devices internally organized as 128x8/256x8/512x8 bits.They feature a 16 byte page write buffer and support the Serial Peripheral Interface (SPI) protocol.

Features

20 MHz (5 V) SPI Compatible.
1.8 V to 5.5 V Supply Voltage Range.
SPI Modes (0,0) & (1,1).
16.
byte Page Write Buffer.
Self.
timed Write Cycle.
Hardware and Software Protection.
Block Write Protection.
Protect 1/4, 1/2 or Entire EEPROM Array.
Low Power CMOS Technology.
1,000,000 Program/Erase Cycles.
100 Year Data Retention.
Industrial and Extended Temperature Range.
