CAT25080 (CAT25080 / CAT25160) 8-Kb and 16-Kb SPI Serial CMOS EEPROM

CAT25080 Description

CAT25080, CAT25160 8-Kb and 16-Kb SPI Serial CMOS EEPROM .
The CAT25080/25160 are 8-Kb/16-Kb Serial CMOS EEPROM devices internally organized as 1024x8/2048x8 bits.

CAT25080 Features

* 10 MHz SPI compatible
* 1.8V to 5.5V supply voltage range
* SPI modes (0,0) & (1,1)
* 32-byte page write buffer
* Self-timed write cycle
* Hardware and software protection
* Block write protection
* Protect 1/4, 1/2 or entire EEPROM a

📥 Download Datasheet

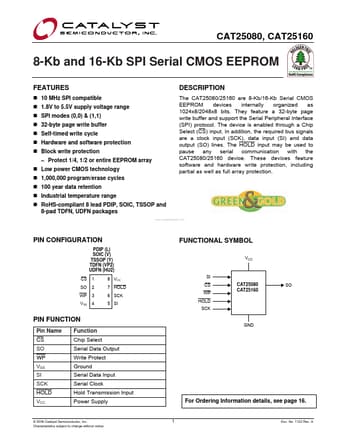

Preview of CAT25080 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CAT25080
Manufacturer
Catalyst Semiconductor
File Size
279.22 KB
Datasheet
CAT25080_CatalystSemiconductor.pdf
Description
(CAT25080 / CAT25160) 8-Kb and 16-Kb SPI Serial CMOS EEPROM
