CAT25010 1K/2K/4K SPI Serial CMOS EEPROM

CAT25010 Description

CAT25010/20/40 1K/2K/4K SPI Serial CMOS EEPROM .
The CAT25010/20/40 is a 1K/2K/4K Bit SPI Serial CMOS EEPROM internally organized as 128x8/256x8/ 512x8 bits.

CAT25010 Features

* s 10 MHz SPI compatible s 1.8 to 6.0 volt operation s Hardware and software protection s Low power CMOS technology s SPI modes (0,0 & 1,1)
* s Commercial, industrial, automotive and extended s 1,000,000 program/erase cycles s 100 year data retention s Self-timed write cycle H GEN FR ALO EE LE

📥 Download Datasheet

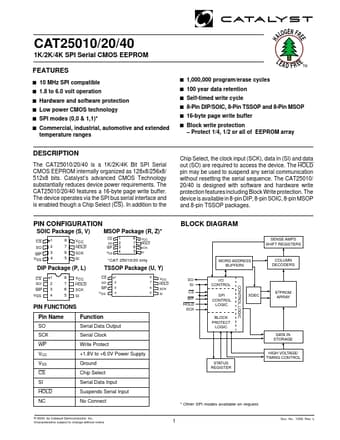

Preview of CAT25010 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CAT25010
Manufacturer
Catalyst Semiconductor
File Size
73.06 KB
Datasheet
CAT25010_CatalystSemiconductor.pdf
Description
1K/2K/4K SPI Serial CMOS EEPROM
