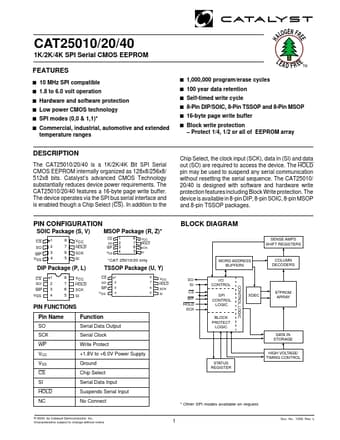

CAT25020, CAT25010 - 1K/2K/4K SPI Serial CMOS EEPROM

Catalyst Semiconductor

Datasheet Details

Part number	CAT25020, CAT25010
Manufacturer	Catalyst Semiconductor
File Size	73.06 KB
Description	1K/2K/4K SPI Serial CMOS EEPROM
Datasheet	CAT25010_CatalystSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: CAT25020, CAT25010. Please refer to the document for exact specifications by model.

The CAT25010/20/40 is a 1K/2K/4K Bit SPI Serial CMOS EEPROM internally organized as 128x8/256x8/ 512x8 bits.

s 10 MHz SPI compatible s 1.8 to 6.0 volt operation s Hardware and software protection s Low power CMOS technology s SPI modes (0,0 & 1,1).
s Commercial, industrial, automotive and extended temperature ranges ALOGEN FR LEA D F REETM s 1,000,000 program/erase cycles s 100 year data retention s Self-timed write cycle s 8-Pin DIP/SOIC, 8-Pin TSSOP and 8-Pin MSOP s 16-byte page write buffer s Block write protection.
Protect 1/4, 1/2 or all of EEPROM array H.
