CAT25160, CAT25080, (CAT25080 / CAT25160) 8-Kb and 16-Kb SPI Serial CMOS EEPROM

CAT25080, CAT25160 8-Kb and 16-Kb SPI Serial CMOS EEPROM .
The CAT25080/25160 are 8-Kb/16-Kb Serial CMOS EEPROM devices internally organized as 1024x8/2048x8 bits.

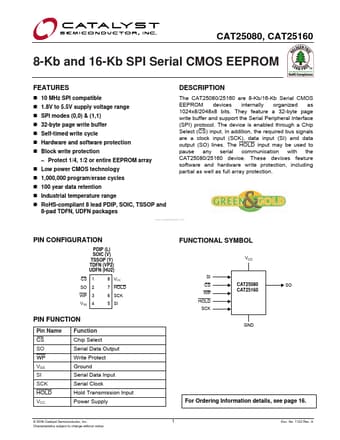

datasheet Preview Page 1 from Datasheet4u.com

CAT25080_CatalystSemiconductor.pdf

CAT25160 Datasheet Preview — This datasheet PDF includes multiple part numbers: CAT25160, CAT25080. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CAT25160, CAT25080

Manufacturer:

Catalyst Semiconductor

File Size:

279.22 KB

Description:

(CAT25080 / CAT25160) 8-Kb and 16-Kb SPI Serial CMOS EEPROM

Note:

This datasheet PDF includes multiple part numbers: CAT25160, CAT25080.
Please refer to the document for exact specifications by model.

Features

* 10 MHz SPI compatible
* 1.8V to 5.5V supply voltage range
* SPI modes (0,0) & (1,1)
* 32-byte page write buffer
* Self-timed write cycle
* Hardware and software protection
* Block write protection
* Protect 1/4, 1/2 or entire EEPROM a
