CPH6350 - P-Channel Power MOSFET

ON Semiconductor

📥 Download Datasheet

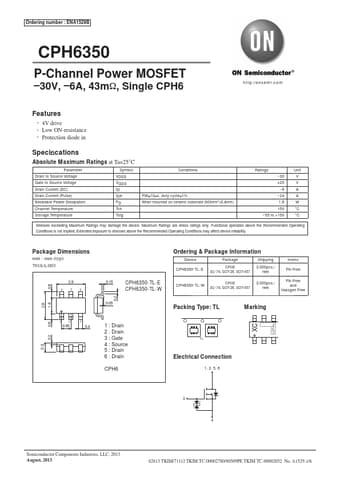

CPH6350 Datasheet Preview — Preview of CPH6350 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CPH6350
Manufacturer	ON Semiconductor ↗
File Size	168.18 KB
Description	P-Channel Power MOSFET
Datasheet	CPH6350-ONSemiconductor.pdf

CPH6350 Product details

Features

4V drive.
Low ON-resistance.
Protection diode in Speciﬁcations Absolute Maximum Ratings at Ta=25°C Parameter Symbol Drain to Source Voltage Gate to Source Voltage Drain Current (DC) Drain Current (Pulse) Allowable Power Dissipation Channel Temperature VDSS VGSS ID IDP PD Tch Storage Temperature Tstg Conditions PW≤10μs, duty cycle≤1% When mounted on ceramic substrate (900mm2×0.8mm) Ratings --30 ±20 --6 --24 1.6 150 --55 to +150 Unit V V A A W °C °C Stresses.
