CS5203-3 - Linear Regulator

CS5203-3 Description

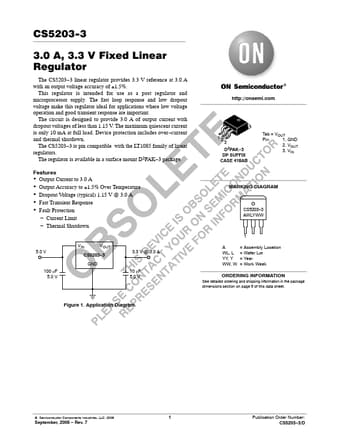

www.DataSheet4U.com CS5203 *3 3.0 A, 3.3 V Fixed Linear Regulator The CS5203 *3 linear regulator provides 3.3 V reference at 3.0 A with.
Package Pin Number D2PAK. 3 1 2 3 Pin Symbol GND VOUT VIN Ground connection.

CS5203-3 Features

* Output Current to 3.0 A
* Output Accuracy to ±1.5% Over Temperature
* Dropout Voltage (typical) 1.15 V @ 3.0 A
* Fast Transient Response
* Fault Protection
* Current Limit
* Thermal Shutdown VIN VOUT http://onsemi. com 12 3 D2PAK
* 3

CS5203-3 Applications

* where low voltage operation and good transient response are important. The circuit is designed to provide 3.0 A of output current with dropout voltages of less than 1.15 V. The maximum quiescent current is only 10 mA at full load. Device protection includes over
* current and thermal shutdown.
