ESD7321, ESD Protection Diodes

ESD Protection Diodes Low Capacitance ESD Protection Diode for High Speed Data Lines ESD7321 The ESD7321 ESD protection diodes are designed to protec.

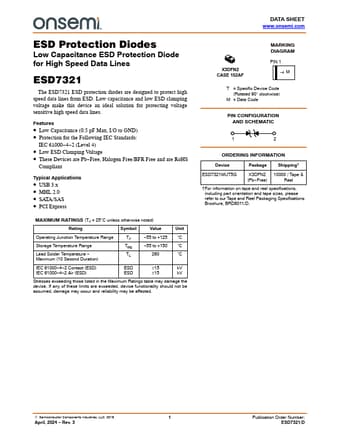

datasheet Preview Page 1 from Datasheet4u.com

ESD7321-ONSemiconductor.pdf

ESD7321 Datasheet Preview — Preview of ESD7321 PDF

Datasheet Details

Part number:

ESD7321

Manufacturer:

ON Semiconductor ↗

File Size:

283.38 KB

Description:

ESD Protection Diodes

Features

* Low Capacitance (0.5 pF Max, I/O to GND)
* Protection for the Following IEC Standards: IEC 61000
* 4
* 2 (Level 4)
* Low ESD Clamping Voltage
* These Devices are Pb

Applications

* USB 3.x
* MHL 2.0
* SATA/SAS
* PCI Express MAXIMUM RATINGS (TJ = 25°C unless otherwise noted) Rating Symbol Value Unit Operating Junction Temperature Range TJ
* 55 to +125 °C Storage Temperature Range Tstg
* 55 to +150 °C Lead Solder Temper
