ESD73034D - Transient Voltage Suppressors

ESD73034D Description

ESD73034D ESD73034D 4-Lines, Bi-directional, Ultra-low Capacitance Transient Voltage Suppressors http//:www.sh-willsemi.com .
The ESD73034D is an ultra-low capacitance TVS (Transient Voltage Suppressor) array designed to protect high speed data interfaces.

ESD73034D Features

* DFN2510-10L (Bottom view) NC NC GND NC NC 10 9 8 7 6 1234 5 I/O1 I/O2 GND I/O3 I/O4 1 2 3, 8 45 Pin configuration (Top view)
* Stand-off voltage: ±3.3V Max.
* Transient protection for each line according to IEC61000-4-2 (ESD): ±10kV (contact discharge) IEC61000-4-4 (EFT): 40A (5/50ns)

ESD73034D Applications

* 10 6 TGYW 1 5 TG = Device code YW = Date code Marking Order information
* USB 3.0 and USB 3.1
* HDMI 1.3, HDMI 1.4 and HDMI 2.0
* Portable Electronics and Notebooks Device Package Shipping ESD73034D-10/TR DFN2510-10L 3000/Tape&Reel Will Semiconductor Ltd. 1 Revision 1.1, 2

📥 Download Datasheet

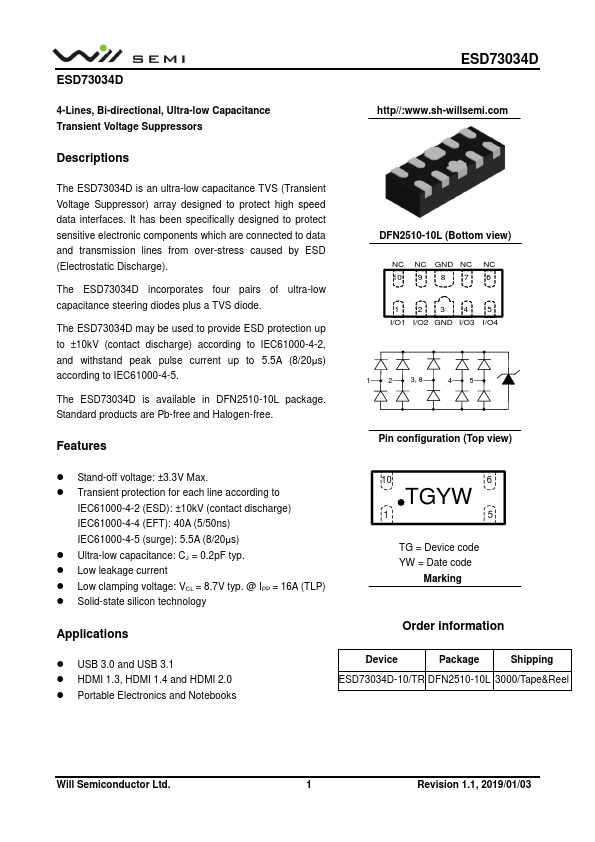

Preview of ESD73034D PDF

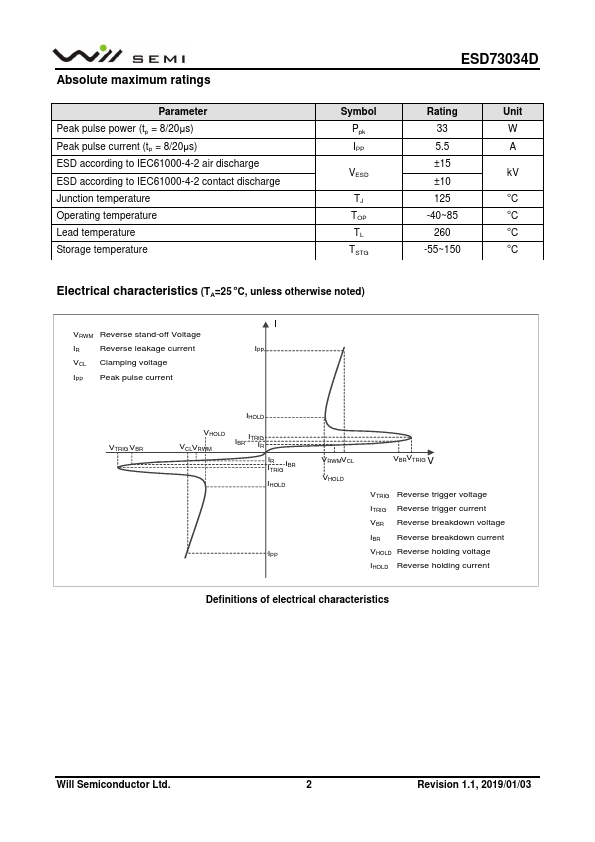

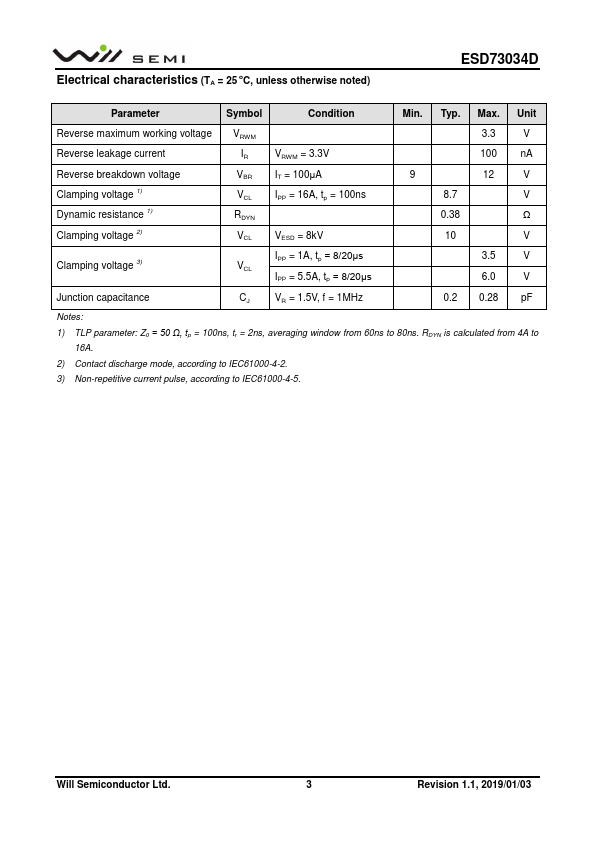

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ESD73034D
Manufacturer
WillSEMI
File Size
426.01 KB
Datasheet
ESD73034D-WillSEMI.pdf
Description
Transient Voltage Suppressors
