2 Publication Order Number: ESD7331/D ESD7331 ELECTRICAL CHARACTERISTICS (TA = 25C unless otherwise noted) Symbol Parameter IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage

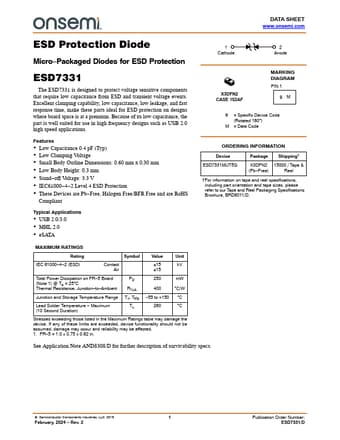

DATA SHEET www.onsemi.com ESD Protection Diode Micro Packaged Diodes for ESD Protection ESD7331 The ESD7331 is designed to protect voltage sensitive components that require low capacitance from ESD and transient voltage events.

Excellent clamping capability, low capacitance, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium.

Because of its low capacitance, the part is well suited for use in high frequency designs

ESD7331 Features

* Low Capacitance 0.4 pF (Typ)

* Low Clamping Voltage

* Small Body Outline Dimensions: 0.60 mm x 0.30 mm

* Low Body Height: 0.3 mm

* Stand

* off Voltage: 3.3 V

* IEC61000

* 4

* 2 Level 4 ESD Protection

* These Devices are Pb

* Free, Halogen Free/BF
