ESD7371 ESD Protection Diode

of survivability specs.  Semiconductor Components Industries, LLC, 2014 1 February, 2024 * Rev. 4 Publication Order Number: ESD7371/D ESD7371, SZESD7371 Series ELECTRICAL CHARACTERISTICS (TA = 25C unless otherwise noted) Symbol Parameter IPP Maximum Reverse Peak Pulse Current VC.

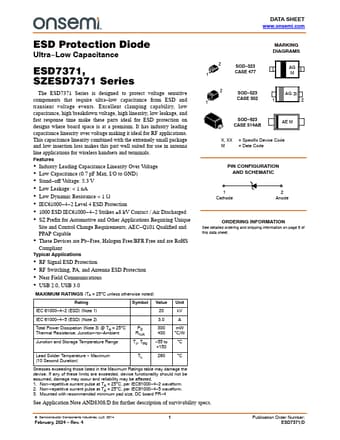

DATA SHEET www.onsemi.com ESD Protection Diode Ultra Low Capacitance MARKING DIAGRAMS ESD7371, SZESD7371 Series 2 SOD 323 AG 1 CASE 477 M The ESD7371 Series is designed to protect voltage sensitive components that require ultra low capacitance from ESD and transient voltage events. Excellent clamping capability, low capacitance, high breakdown voltage, high linearity, low leakage, and fast response time make these parts ideal for ESD protection on designs where .

ESD7371 Features

* Industry Leading Capacitance Linearity Over Voltage

* Low Capacitance (0.7 pF Max, I/O to GND)

* Stand

* off Voltage: 5.3 V

* Low Leakage: < 1 nA

* Low Dynamic Resistance < 1 W

* IEC61000

* 4

* 2 Level 4 ESD Protection

* 1000 ESD IEC61000

* 4
