FDBL86561-F085 Datasheet, Mosfet, ON Semiconductor

FDBL86561-F085 Features

  • Mosfet
  • Typical RDS(on) = 0.85 mΩ at VGS = 10V, ID = 80 A
  • Typical Qg(tot) = 170 nC at VGS = 10V, ID = 80 A
  • UIS Capability
  • RoHS Compliant
  • Quali

PDF File Details

Part number:

FDBL86561-F085

Manufacturer:

ON Semiconductor ↗

File Size:

406.78kb

Download:

📄 Datasheet

Description:

N-channel power mosfet.

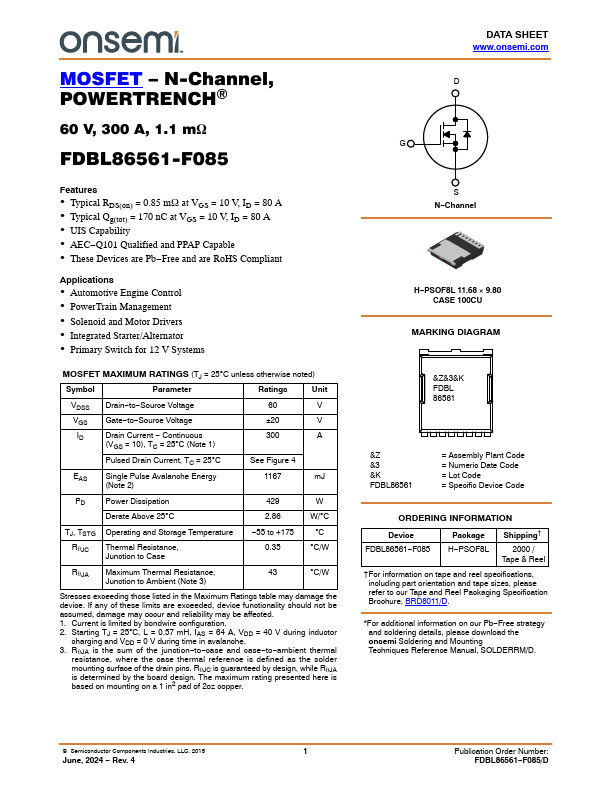

Datasheet Preview: FDBL86561-F085 📥 Download PDF (406.78kb)

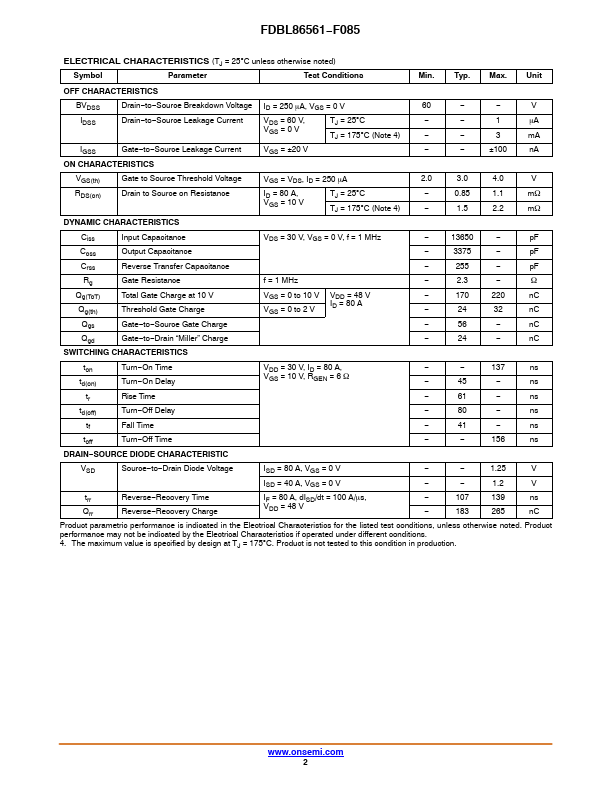

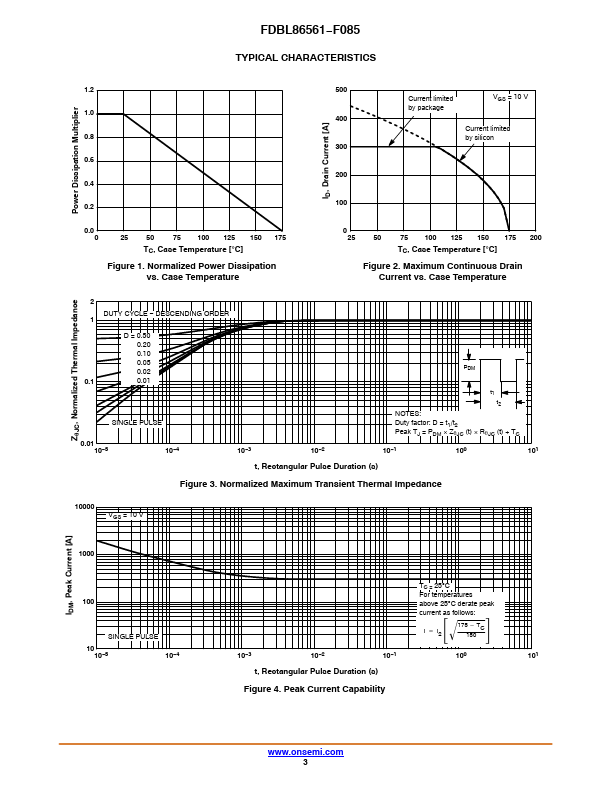

Page 2 of FDBL86561-F085 Page 3 of FDBL86561-F085

FDBL86561-F085 Application

  • Applications
  • Automotive Engine Control
  • PowerTrain Management G
  • Solenoid and Motor Drivers
  • Integrated St
