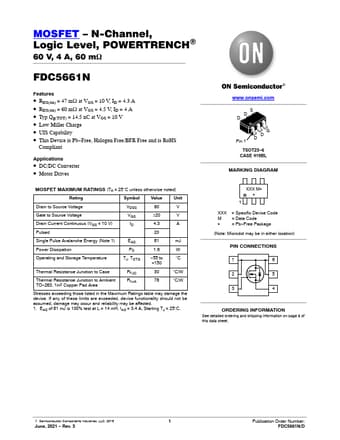

FDC5661N Datasheet, Mosfet, ON Semiconductor

FDC5661N Features

• Mosfet
• RDS(on) = 47 mW at VGS = 10 V, ID = 4.3 A
• RDS(on) = 60 mW at VGS = 4.5 V, ID = 4 A
• Typ Qg(TOT) = 14.5 nC at VGS = 10 V
• Low Miller Charge

PDF File Details

Part number:

FDC5661N

Manufacturer:

ON Semiconductor ↗

File Size:

407.64kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

FDC5661N Application

• Applications
• DC/DC Converter
• Motor Drives MOSFET MAXIMUM RATINGS (TA = 25°C unless otherwise noted) Rating Symbol Value Unit
