FDD4141-F085BK - -40V -50A P-Channel MOSFET

FDD4141-F085BK Description

MOSFET * P-Channel, POWERTRENCH) -40 V, -50 A, 12.3 mW FDD4141-F085BK General .
This P. Channel MOSFET has been produced using onsemi’s proprietary POWERTRENCH technology to deliver low RDS(on) and optimized BVDSS capabilit.

FDD4141-F085BK Features

* Typ RDS(on) = 12.3 mW at VGS =
* 10 V, ID =
* 12.7 A
* Typ RDS(on) = 18.0 mW at VGS =
* 4.5 V, ID =
* 10.4 A
* High Performance Trench Technology for Extremely Low RDS(on)
* AEC
* Q101 Qualified and PPAP Capable
* This Device is Pb
* Free

📥 Download Datasheet

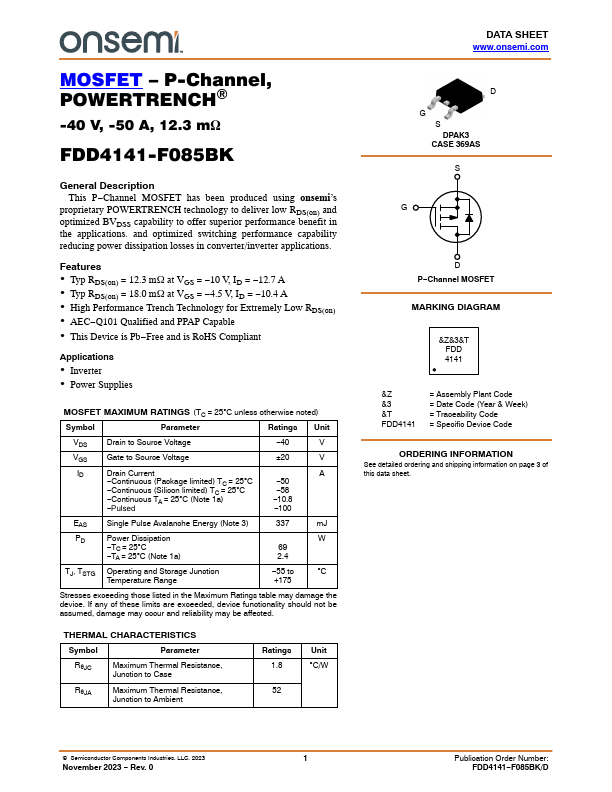

Preview of FDD4141-F085BK PDF

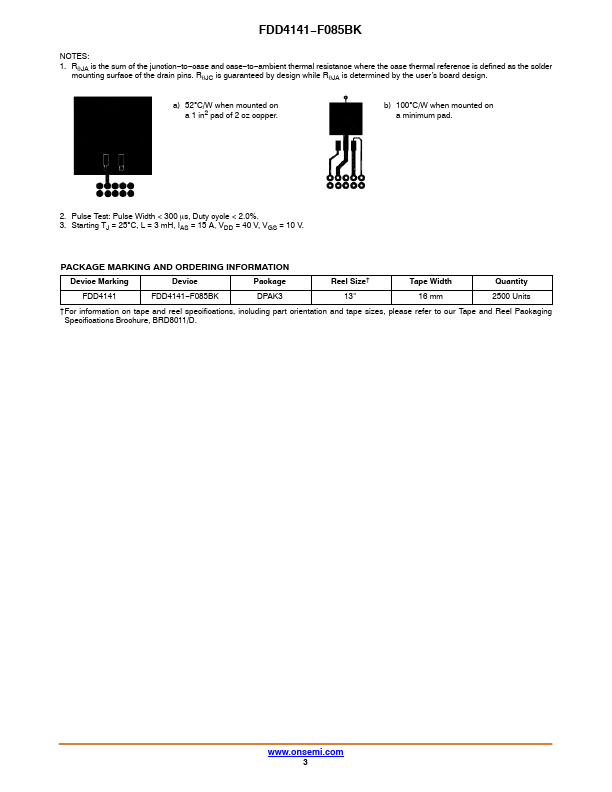

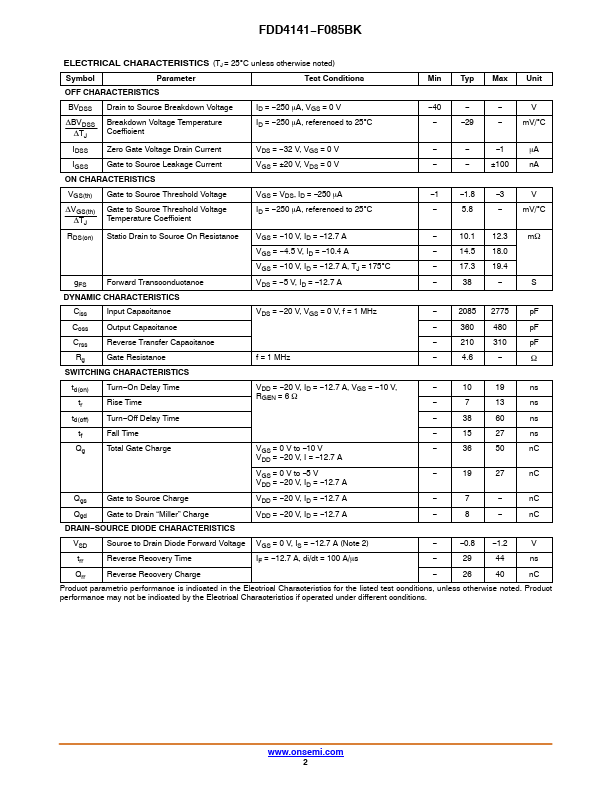

datasheet Preview Page 2 datasheet Preview Page 3
