FGD4536

IGBT

FGD4536 Features

* High Current Capability

* Low Saturation Voltage: VCE(sat) = 1.59 V @ IC = 50 A

* High Input Impedance

* Fast Switching

* RoHS Compliant Applications

* PDP TV, Consumer Appliances General Description Using novel trench IGBT technology, ON Semiconduc

FGD4536 General Description

Using novel trench IGBT technology, ON Semiconductor’s new series of trench IGBTs offer the optimum performance for consumer appliances and PDP TV applications where low conduction and switching losses are essential. C G E TO-252/D-PAK Absolute Maximum Ratings Symbol VCES VGES IC pulse(1)
* .

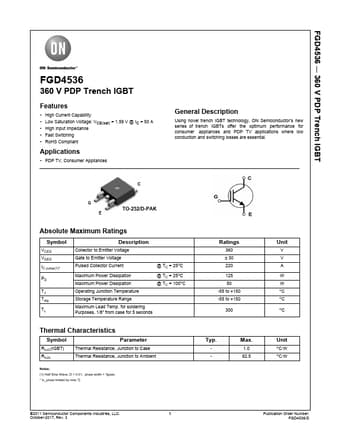

FGD4536 Datasheet (1.08 MB)
