FUSB302T - Programmable USB Type-C Controller

Product Overview

ON Semiconductor

Part number	FUSB302T
Manufacturer	ON Semiconductor
File Size	314.68 KB
Description	Programmable USB Type-C Controller
Datasheet	FUSB302T Datasheet

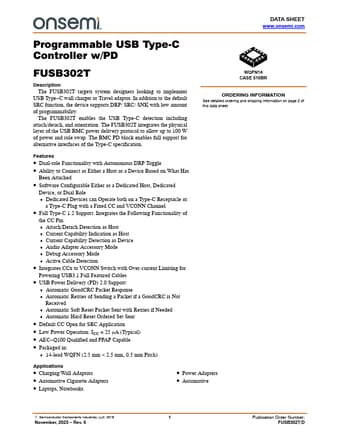

Additional preview pages of the FUSB302T datasheet.

The FUSB302T targets system designers looking to implement USB Type C wall charger or Travel adaptor.

Dual-role Functionality with Autonomous DRP Toggle.
Ability to Connect as Either a Host or a Device Based on What Has Been Attached.
Software Configurable Either as a Dedicated Host, Dedicated Device, or Dual Role.
Dedicated Devices can Operate both on a Type-C Receptacle or a Type-C Plug with a Fixed CC and VCONN Channel.
Full Type-C 1.2 Support. Integrates the Following Functionality of the CC Pin:.
Attach/Detach Detection as Host.
