FUSB1501

USB2.0 Full-Speed / Low-Speed Transceiver

FUSB1501 Features

* Complies with USB2.0 Specification

* Supports 12Mbps and 1.5Mbps USB2.0 Speeds - Single Ended (SE) Mode Signaling - Slew-Rate Controlled Differential Data Driver - Differential Input Receiver with Wide Common- Mode Range and High Input Sensitivity - Stable RCV Output during SE0 Condition -

FUSB1501 General Description

The FUSB1500 is a USB2.0 FS/LS transceiver with resistive charger detection. It is compliant with the Universal Serial Bus Specification, Rev. 2.0 (USB2.0). Ideal for portable electronic devices; such as mobile phones, digital still cameras, and personal digital assistants; it allows USB Application.

FUSB1501 Datasheet (682.32 KB)

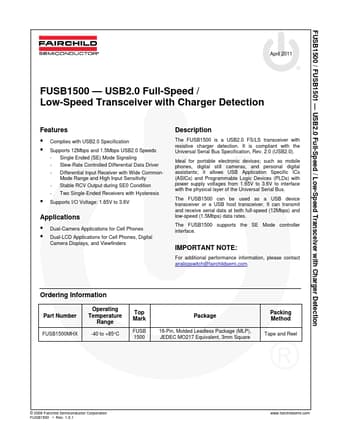

Preview of FUSB1501 PDF

Datasheet Details

Part number:

FUSB1501

Manufacturer:

Fairchild Semiconductor

File Size:

682.32 KB

Description:

Usb2.0 full-speed / low-speed transceiver.
FUSB1500 / FUSB1501

* USB2.0 Full-Speed / Low-Speed Transceiver with Charger Detection April 2011 FUSB1500

* USB2.0 Full-Speed / Low.
