FUSB2805 Datasheet, Transceiver, Fairchild Semiconductor

FUSB2805 Features

  • Transceiver
  • Complies with USB 2.0, OTG Rev 1.3 Supplement, and ULPI Rev 1.1 Specifications
  • Supports 480 Mbps, 12 Mbps, and 1.5 Mbps USB2.0 Speeds - Integrated Termination Resist

PDF File Details

Part number:

FUSB2805

Manufacturer:

Fairchild Semiconductor

File Size:

1.33MB

Download:

📄 Datasheet

Description:

Usb2.0 high-speed otg transceiver. The FUSB2805 is a UTMI+ Low-Pin Interface (ULPI) USB2.0 OTG transceiver. It is compliant with the Universal Serial Bus Specification

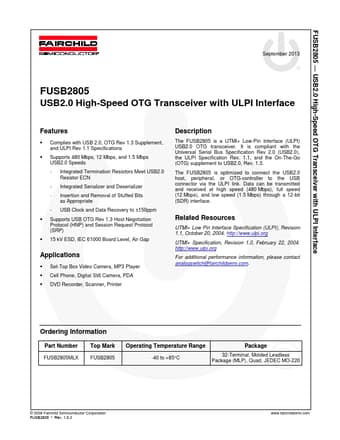

Datasheet Preview: FUSB2805 📥 Download PDF (1.33MB)
Page 2 of FUSB2805 Page 3 of FUSB2805

FUSB2805 Application

  • Applications
  • Set-Top Box Video Camera, MP3 Player
  • Cell Phone, Digital Still Camera, PDA
  • DVD Recorder, Scanner, Printer

TAGS

FUSB2805
USB2.0
High-Speed
OTG
Transceiver
Fairchild Semiconductor
