MAX1720 - Switched Capacitor Voltage Inverter

Product Overview

ON Semiconductor

📥 Download Datasheet

MAX1720 Switched Capacitor Voltage Inverter by ON Semiconductor - Datasheet Preview — Datasheet preview – MAX1720

Datasheet Details

Part number	MAX1720
Manufacturer	ON Semiconductor
File Size	208.63 KB
Description	Switched Capacitor Voltage Inverter
Datasheet	MAX1720 Datasheet
Additional preview pages of the MAX1720 datasheet.

Product details

Description

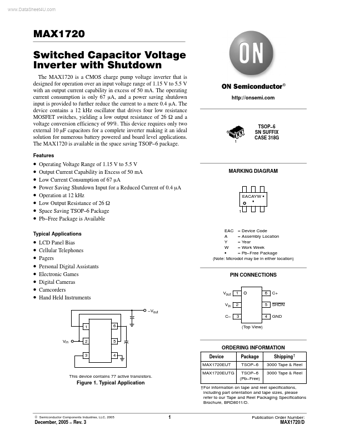

The MAX1720 charge pump converter inverts the voltage applied to the Vin pin. phase operation (Figure 15).

Features

http://onsemi. com 6 1 TSOP.
6 SN SUFFIX CASE 318G.
Operating Voltage Range of 1.15 V to 5.5 V Output Current Capability in Excess of 50 mA Low Current Consumption of 67 mA Power Saving Shutdown Input for a Reduced Current of 0.4 mA Operation at 12 kHz Low Output Resistance of 26 W Space Saving TSOP.
6 Package Pb.
