MAX707, (MAX707 / MAX708) UP Supervisory Circuits
Manual Reset Input.
MR can be driven from TTL/CMOS logic or from a manual Reset switch.
This input, when floating, is internally pulled up to VCC with 50 kW resistor.
Supply Voltage: C = 100 nF is recommended as a bypass capacitor between VCC and GND.
Ground Reference VCC GND PFI Power Fail Voltage

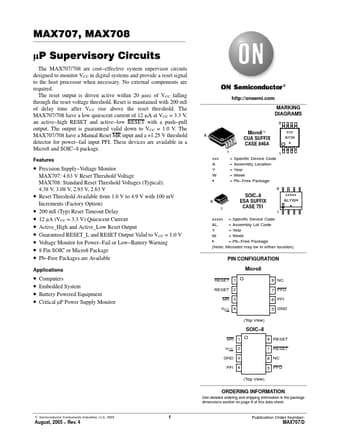

www.DataSheet4U.com MAX707, MAX708 mP Supervisory Circuits The MAX707/708 are cost effective system supervisor circuits designed to monitor VCC in digital systems and provide a reset signal to the host processor when necessary.
No external components are required.
The reset output is driven active within 20 msec of VCC falling through the reset voltage threshold.
Reset is maintained with 200 mS of delay time after VCC rise above the reset threshold.
The MAX707/708 have a low quiescent c
MAX707 Features
* http://onsemi.com MARKING DIAGRAMS 8 8 Micro8t CUA SUFFIX CASE 846A 1 xxx A Y W G = Specific Device Code = Assembly Location = Year = Week = Pb
* Free Package 8 8 1 SOIC
* 8 ESA SUFFIX CASE 751 1 xxxxx ALYWG G 1 xxx AYW G
* Precision Supply
* Voltage Monitor MAX707: 4.63
