MBR1H100SFT3G Surface Mount Schottky Power Rectifier

MBR1H100SFT3G Description

DATA SHEET www.onsemi.com Schottky Power Rectifier, Surface Mount 1.0 A, 100 V, SOD *123FL Package MBR1H100SFT3G, NRVB1H100SFT3G This device u.

MBR1H100SFT3G Features

* Guardring for Stress Protection
* Low Forward Voltage
* 175°C Operating Junction Temperature
* Epoxy Meets UL 94 V
* Package Designed for Optimal Automated Board Assembly
* ESD Ratings: Machine Model, C Human Body Model, 3B
* NRVB P

MBR1H100SFT3G Applications

* where compact size and weight are critical to the system. Because of its small size, it is ideal for use in portable and battery powered products such as cellular and cordless phones, chargers, notebook computers, printers, PDAs and PCMCIA cards. Typical applications are AC
* DC and DC

📥 Download Datasheet

Preview of MBR1H100SFT3G PDF

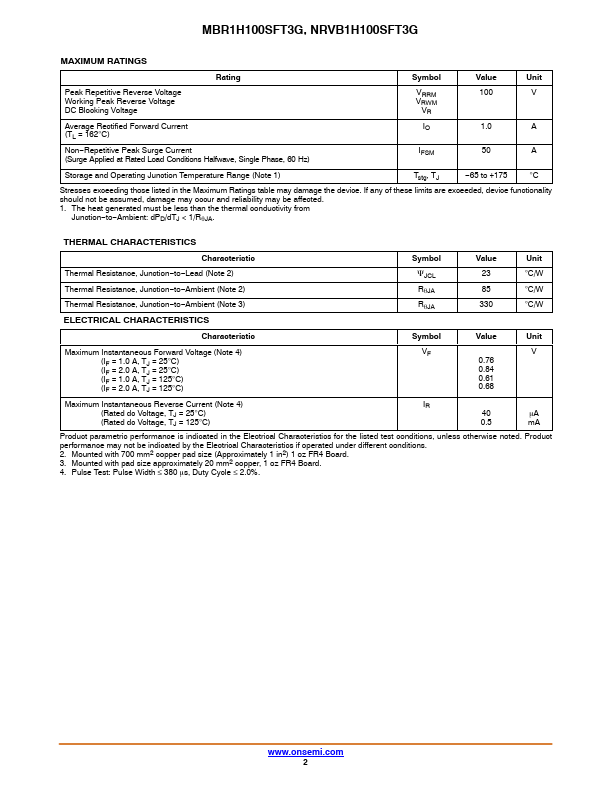

datasheet Preview Page 2 datasheet Preview Page 3
