MC14001B - CMOS Gates

Datasheet Summary

Description

Quad 2 Input NOR Gate Quad 2 Input NAND Gate Triple 3 Input NAND Gate Triple 3 Input NOR Gate Quad 2 Input OR Gate Triple 3 Input AND Gate MC14081B MC14082B Quad 2 Input AND Gate Dual 4 Input AND Gate ORDERING INFORMATION See detaile

Features

  • Supply Voltage Range = 3.0 Vdc to 18 Vdc.
  • All Outputs Buffered.
  • Capable of Driving Two Low.
  • power TTL Loads or One Low.
  • power Schottky TTL Load Over the Rated Temperature Range.
  • Double Diode Protection on All Inputs Except: Triple Diode Protection on MC14011B and MC14081B.
  • Pin.
  • for.
  • Pin Replacements for Corresponding CD4000 Series B Suffix Devices.
  • NLV Prefix for Automotive and Other.

📥 Download Datasheet

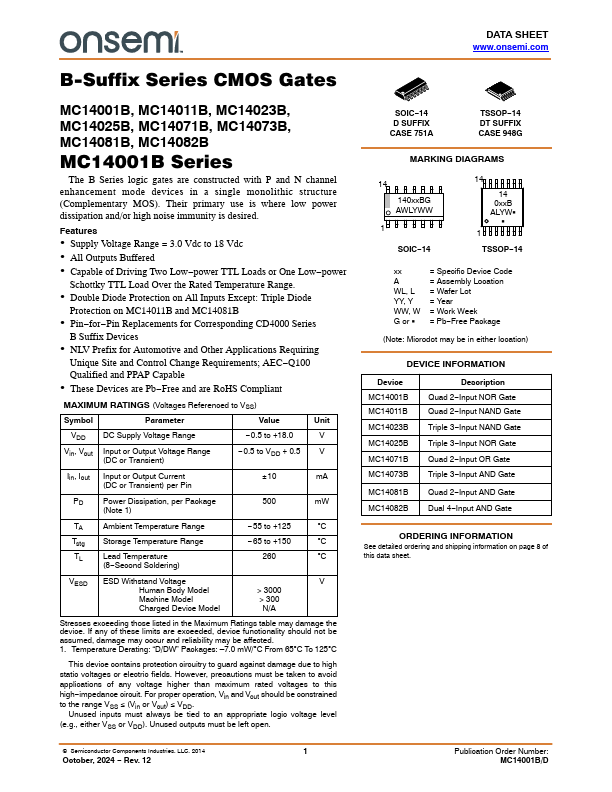

Datasheet preview – MC14001B

Datasheet Details

Part number MC14001B
Manufacturer ON Semiconductor
File Size 264.93 KB
Description CMOS Gates
Datasheet download datasheet MC14001B Datasheet

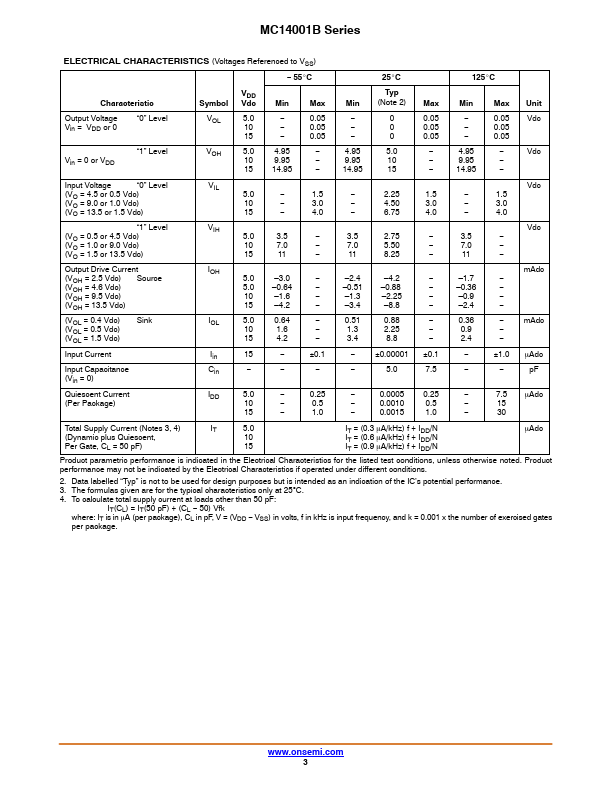

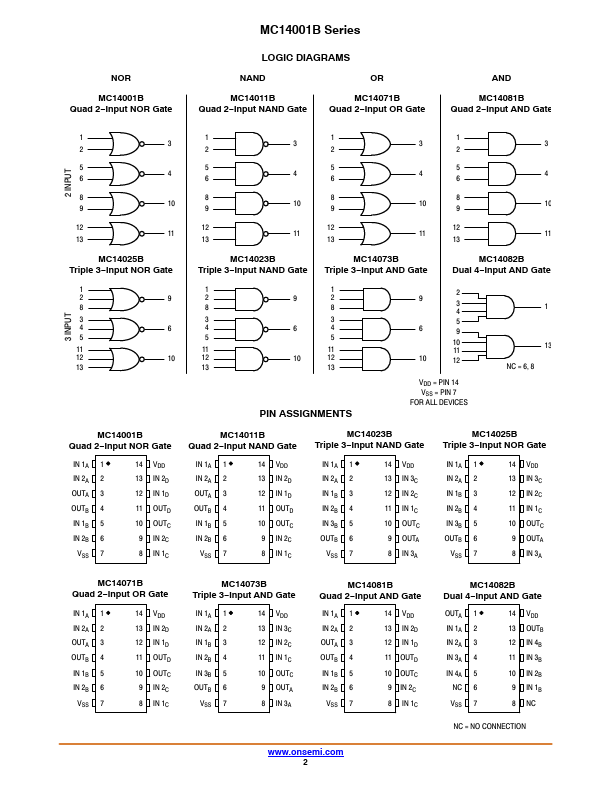

Additional preview pages of the MC14001B datasheet.

📁 Similar Datasheet

  • MC14001B - B-Suffix Series CMOS Gates (Motorola)
  • MC14001UB - Dual 3-Input NOR Gate Plus Inverter (Motorola)
  • MC1400 - (MC1500 / MC1400) Laser Trimmed Silicon Monolithic Integrated Circuit (Motorola)
  • MC14000UB - Dual 3-Input NOR Gate Plus Inverter (Motorola)
  • MC14002B - B-Suffix Series CMOS Gates (Motorola)
  • MC14002UB - Dual 3-Input NOR Gate Plus Inverter (Motorola)
  • MC14005N - MC14005N LED (ETC)
  • MC14006B - 18-Bit Static Shift Register (Motorola)
  • MC14007N - MC14005N LED (ETC)
  • MC14007UB - Dual Complementary Pair Plus Inverter (Motorola)
Other Datasheets by ON Semiconductor

Full PDF Text Transcription

Click to expand full text
DATA SHEET www.onsemi.com B-Suffix Series CMOS Gates MC14001B, MC14011B, MC14023B, MC14025B, MC14071B, MC14073B, MC14081B, MC14082B MC14001B Series The B Series logic gates are constructed with P and N channel enhancement mode devices in a single monolithic structure (Complementary MOS). Their primary use is where low power dissipation and/or high noise immunity is desired. Features  Supply Voltage Range = 3.0 Vdc to 18 Vdc  All Outputs Buffered  Capable of Driving Two Low−power TTL Loads or One Low−power Schottky TTL Load Over the Rated Temperature Range.
