MC14020B

14-Bit Binary Counter

MC14020B Features

* Fully Static Operation

* Diode Protection on All Inputs

* Supply Voltage Range = 3.0 Vdc to 18 Vdc

* Capable of Driving Two Low

* power TTL Loads or One Low

* power Schottky TTL Load Over the Rated Temperature Range

* Buffered Outputs Available f

MC14020B Datasheet (100.73 KB)

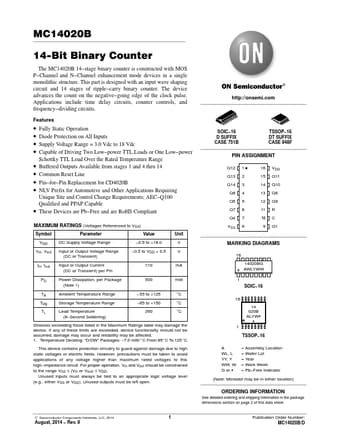

Preview of MC14020B PDF

Datasheet Details

Part number:

MC14020B

Manufacturer:

ON Semiconductor ↗

File Size:

100.73 KB

Description:

14-bit binary counter.
MC14020B 14-Bit Binary Counter The MC14020B 14

*stage binary counter is constructed with MOS P

*Channel and N

*Channel enhanceme.
