MC14021B 8-Bit Static Shift Register

MC14014B, MC14021B 8-Bit Static Shift Register The MC14014B and MC14021B 8 bit static shift registers are constructed with MOS P channel and N channel enhancement mode devices in a single monolithic structure. These shift registers find primary use in parallel to serial data conversion, synchronous and asynchronous parallel input, serial output data queueing; and other general purpose register applications requiring low power and/or high noise immunity. F.

MC14021B Features

* Synchronous Parallel Input/Serial Output (MC14014B)

* Asynchronous Parallel Input/Serial Output (MC14021B)

* Synchronous Serial Input/Serial Output

* Full Static Operation

* “Q” Outputs from Sixth, Seventh, and Eighth Stages

* Double Diode Input Prot

MC14021BCP_ONSemiconductor.pdf

This datasheet PDF includes multiple part numbers: MC14021B, MC14021BCP. Please refer to the document for exact specifications by model.

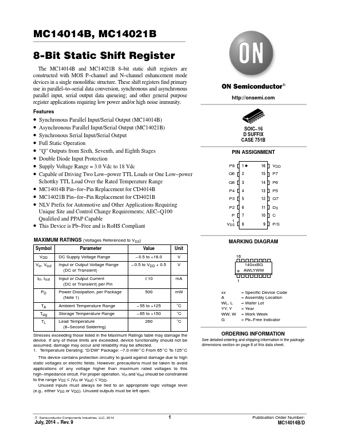

MC14021B Datasheet Preview Page 2 MC14021B Datasheet Preview Page 3
