MC14024B 7-Stage Ripple Counter

MC14024B Description

MC14024B 7-Stage Ripple Counter The MC14024B is a 7 *stage ripple counter with short propagation delays and high maximum clock rates.The Res.

MC14024B Features

* Diode Protection on All Inputs
* Output Transitions Occur on the Falling Edge of the Clock Pulse
* Supply Voltage Range = 3.0 Vdc to 18 Vdc
* Capable of Driving Two Low
* power TTL Loads or One Low
* power Schottky TTL Load Over the Rated Temperature Ran

MC14024B Applications

* Requiring Unique Site and Control Change Requirements; AEC
* Q100 Qualified and PPAP Capable
* This Device is Pb
* Free and is RoHS Compliant MAXIMUM RATINGS (Voltages Referenced to VSS) Symbol Parameter Value Unit VDD Vin, Vout DC Supply Voltage Range Input or Output Volt

📥 Download Datasheet

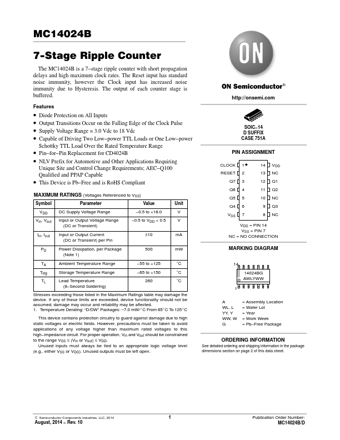

Preview of MC14024B PDF
