MC14541B - Programmable Timer

Features

  • Available Outputs 28, 210, 213 or 216.
  • Increments on Positive Edge Clock Transitions.
  • Built.
  • in Low Power RC Oscillator (±2% accuracy over temperature range and ±20% supply and ±3% over processing at < 10 kHz).
  • Oscillator May Be Bypassed if External Clock Is Available (Apply external clock to Pin 3).
  • External Master Reset Totally Independent of Automatic Reset Operation.
  • Operates as 2n Frequency Divider or Single Transition Timer.

📥 Download Datasheet

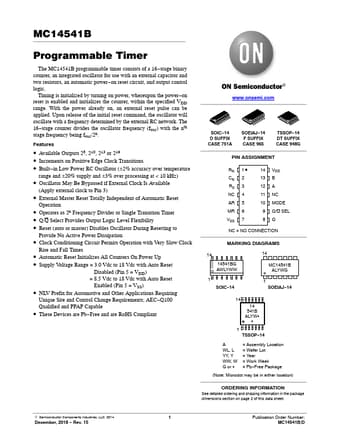

Datasheet preview – MC14541B

Datasheet Details

Part number MC14541B
Manufacturer ON Semiconductor
File Size 152.06 KB
Description Programmable Timer
Datasheet download datasheet MC14541B Datasheet
