MC14549B - Successive Approximation Registers

Product Overview

ON Semiconductor

📥 Download Datasheet

MC14549B Successive Approximation Registers by ON Semiconductor - Datasheet Preview — Datasheet preview – MC14549B

Datasheet Details

Part number	MC14549B
Manufacturer	ON Semiconductor
File Size	192.14 KB
Description	Successive Approximation Registers
Datasheet	MC14549B Datasheet
Additional preview pages of the MC14549B datasheet.

Product details

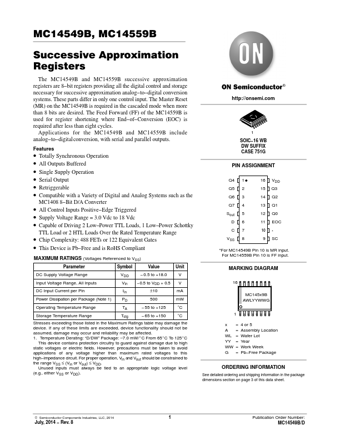

Features

Totally Synchronous Operation.
All Outputs Buffered.
Single Supply Operation.
Serial Output.
Retriggerable.
Compatible with a Variety of Digital and Analog Systems such as the MC1408 8.
Bit D/A Converter.
All Control Inputs Positive.
Edge Triggered.
Supply Voltage Range = 3.0 Vdc to 18 Vdc.
Capable of Driving 2 Low.
Power TTL Loads, 1 Low.
Power Schottky TTL Load or 2 HTL Loads Over the.
