MC1495 LINEAR FOUR-QUADRANT MULTIPLIER

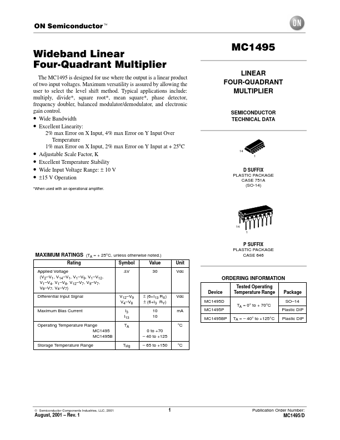

ON Semiconductort Wideband Linear FourĆQuadrant Multiplier The MC1495 is designed for use where the output is a linear product of two input voltages. Maximum versatility is assured by allowing the user to select the level shift method. Typical applications include: multiply, divide , square root , mean square , phase detector, frequency doubler, balanced modulator/demodulator, and electronic gain control. Wide Bandwidth Excellent Linearity: 2% max Error on X Inpu.

MC1495 Features

* components may be selected to optimize a given parameter (e.g. bandwidth) which may in turn restrict another parameter (e.g. maximum output voltage swing). Each important parameter is discussed in detail in the following paragraphs. Linearity, Output Error, ERX or ERY Bandwidth is primarily determi
