MC74LVX04

Hex Inverter

MC74LVX04 Features

* High Speed: tPD = 4.1 ns (Typ) at VCC = 3.3 V

* Low Power Dissipation: ICC = 2 mA (Max) at TA = 25°C

* Power Down Protection Provided on Inputs

* Balanced Propagation Delays

* Low Noise: VOLP = 0.5 V (Max)

* Pin and Function Compatible with Other Sta

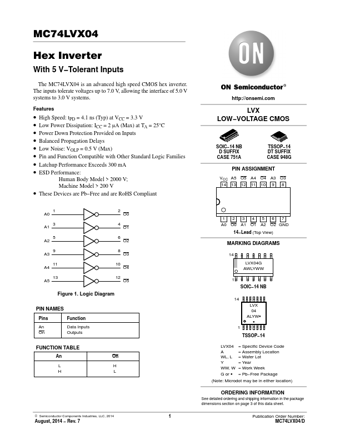

MC74LVX04 Datasheet (231.29 KB)

Preview of MC74LVX04 PDF

Datasheet Details

Part number:

MC74LVX04

Manufacturer:

ON Semiconductor ↗

File Size:

231.29 KB

Description:

Hex inverter.
MC74LVX04 Hex Inverter With 5 V

*Tolerant Inputs The MC74LVX04 is an advanced high speed CMOS hex inverter. The inputs tolerate voltages up to.
