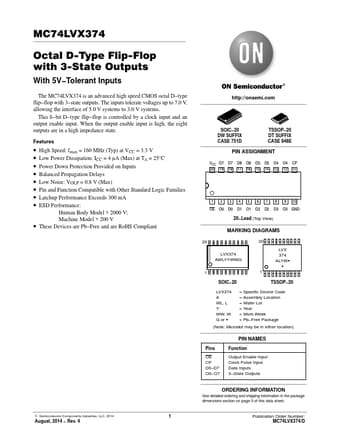

MC74LVX374, Octal D-Type Flip-Flop

MC74LVX374 Octal D-Type Flip-Flop with 3-State Outputs With 5V Tolerant Inputs The MC74LVX374 is an advanced high speed CMOS octal D type flip flop with 3 state outputs.

The inputs tolerate voltages up to 7.0 V, allowing the interface of 5.0 V systems to 3.0 V systems.

This 8 bit D type flip flop is controlled by a clock input and an output enable input.

When the output enable input is high, the eight outputs are in a high impedance state.

MC74LVX374 Features

* High Speed: fmax = 160 MHz (Typ) at VCC = 3.3 V

* Low Power Dissipation: ICC = 4 mA (Max) at TA = 25°C

* Power Down Protection Provided on Inputs

* Balanced Propagation Delays

* Low Noise: VOLP = 0.8 V (Max)

* Pin and Function Compatible with Other S
