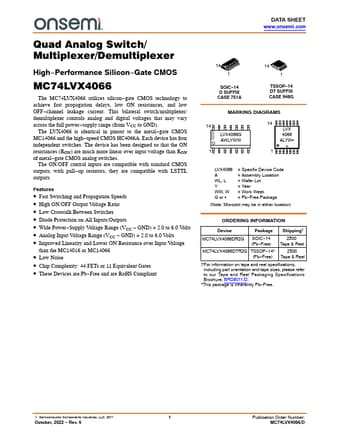

DATA SHEET www.onsemi.com Quad Analog Switch/ Multiplexer/Demultiplexer High Performance Silicon Gate CMOS MC74LVX4066 The MC74LVX4066 utilizes silicon gate CMOS technology to achieve fast propagation delays, low ON resistances, and low OFF channel leakage current.

This bilateral switch/multiplexer/ demultiplexer controls analog and digital voltages that may vary across the full power supply range (from VCC to GND).

The LVX4066 is identical in pinout to t

MC74LVX4066 Features

* Fast Switching and Propagation Speeds

* High ON/OFF Output Voltage Ratio

* Low Crosstalk Between Switches

* Diode Protection on All Inputs/Outputs

* Wide Power

* Supply Voltage Range (VCC

* GND) = 2.0 to 6.0 Volts

* Analog Input Voltage
