MMBT2222AM3T5G - NPN General Purpose Transistor

Datasheet Summary

Features

Reduces Board Space.
This is a Halide.
Free Device.
This is a Pb.
Free Device.

ON Semiconductor

📥 Download Datasheet

Datasheet Details

Part number	MMBT2222AM3T5G
Manufacturer	ON Semiconductor
File Size	119.55 KB
Description	NPN General Purpose Transistor
Datasheet	MMBT2222AM3T5G Datasheet
Additional preview pages of the MMBT2222AM3T5G datasheet.

📁 Similar Datasheet

MMBT2222AM-C - NPN Transistor (SeCoS)
MMBT2222A - NPN Amplifier (GME)
MMBT2222A - NPN Amplifier (MCC)
MMBT2222A - NPN Transistor (CITC)
MMBT2222A - NPN EPITAXIAL SILICON TRANSISTOR (MIC)
MMBT2222A - NPN Transistor (Cystech Electonics)
MMBT2222A - GENERAL PURPOSE NPN TRANSISTORS (TIPTEK)
MMBT2222A - SMALL SIGNAL NPN TRANSISTOR (STMicroelectronics)
MMBT2222A - Surface Mount Si-Epi-Planar Switching Transistors (Diotec)
MMBT2222A - NPN General Purpose Amplifier (Fairchild)

Other Datasheets by ON Semiconductor

MMBT2222AL - General Purpose Transistors
MMBT2222ATT1 - NPN Transistor
MMBT2222ATT1G - NPN Transistor
MMBT2222AWT1G - General Purpose Transistor
MMBT2222L - General Purpose Transistors
MMBT2131T1 - PNP Transistors
MMBT2131T1G - PNP Transistors
MMBT2907A - PNP Transistor

Full PDF Text Transcription

Click to expand full text

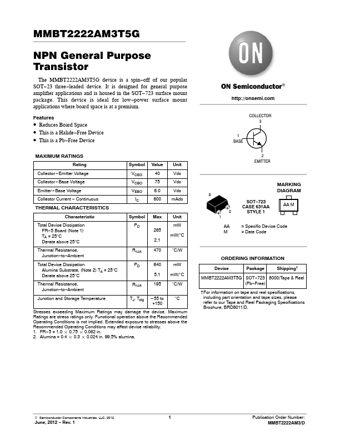

MMBT2222AM3T5G NPN General Purpose Transistor The MMBT2222AM3T5G device is a spin−off of our popular SOT−23 three−leaded device. It is designed for general purpose amplifier applications and is housed in the SOT−723 surface mount package. This device is ideal for low−power surface mount applications where board space is at a premium. Features • Reduces Board Space • This is a Halide−Free Device • This is a Pb−Free Device MAXIMUM RATINGS Rating Symbol Value Unit Collector −Emitter Voltage Collector −Base Voltage Emitter −Base Voltage Collector Current − Continuous THERMAL CHARACTERISTICS VCEO VCBO VEBO IC 40 Vdc 75 Vdc 6.
