MMBT2222AM-C - NPN Transistor

Datasheet Summary

Features

  • Epitaxial Planar Die Construction.

📥 Download Datasheet

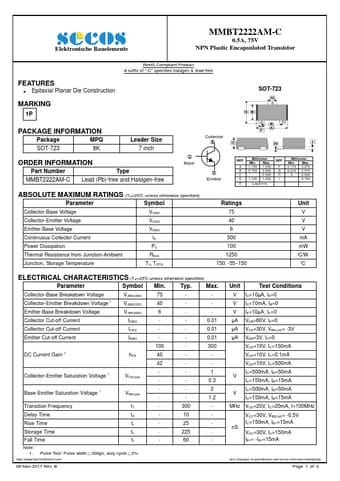

Datasheet preview – MMBT2222AM-C

Datasheet Details

Part number MMBT2222AM-C
Manufacturer SeCoS
File Size 295.20 KB
Description NPN Transistor
Datasheet download datasheet MMBT2222AM-C Datasheet
