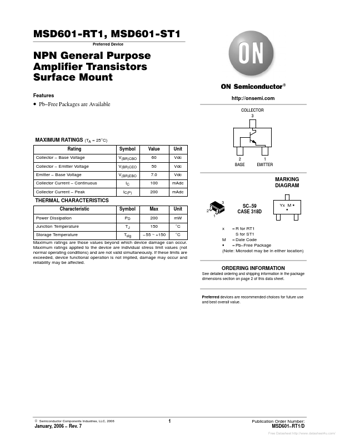

MSD601-RT1
Features
- Pb- Free Packages are Available http://onsemi.
COLLECTOR 3
MAXIMUM RATINGS (TA = 25°C)
Rating Collector
- Base Voltage Collector
- Emitter Voltage Emitter
- Base Voltage Collector Current
- Continuous Collector Current
- Peak Symbol V(BR)CBO V(BR)CEO V(BR)EBO IC IC(P) Value 60 50 7.0 100 200 Unit Vdc Vdc Vdc m Adc m Adc
2 BASE
1 EMITTER
MARKING DIAGRAM
THERMAL CHARACTERISTICS
Characteristic Power Dissipation Junction Temperature Storage Temperature Symbol PD TJ Tstg Max 200 150
- 55 ~ +150 Unit m W °C °C
2 1
SC- 59 CASE 318D
Yx M G G x
Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied, damage may occur and reliability may be affected.
= R for RT1 S for ST1 M = Date Code G = Pb- Free Package (Note: Microdot may be in either...
