NB3N853531E

3.3V Xtal or LVTTL/LVCMOS Input 2:1 MUX to 1:4 LVPECL Fanout Buffer

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part onsemi NB3N853531EDTR2G IC CLK BUFFER 2:4 266MHZ 20TSSOP DigiKey 2500 2500 units
$3.58

NB3N853531E Datasheet (236.85 KB)

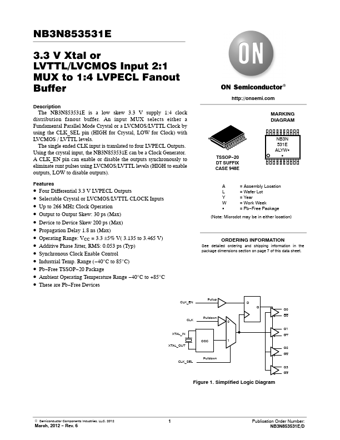

Preview of NB3N853531E PDF

Datasheet Details

Part number:

NB3N853531E

Manufacturer:

ON Semiconductor ↗

File Size:

236.85 KB

Description:

3.3v xtal or lvttl/lvcmos input 2:1 mux to 1:4 lvpecl fanout buffer.

NB3N853531E Features

* Four Differential 3.3 V LVPECL Outputs

* Selectable Crystal or LVCMOS/LVTTL CLOCK Inputs

* Up to 266 MHz Clock Operation

* Output to Output Skew: 30 ps (Max)

* Device to Device Skew 200 ps (Max)

* Propagation Delay 1.8 ns (Max)

* Operating Ra

NB3N853531E General Description

The NB3N853531E is a low skew 3.3 V supply 1:4 clock distribution fanout buffer. An input MUX selects either a Fundamental Parallel Mode Crystal or a LVCMOS/LVTTL Clock by using the CLK_SEL pin (HIGH for Crystal, LOW for Clock) with LVCMOS / LVTTL levels. The single ended CLK input is translated to .
