NB7NPQ1002M Datasheet, Redriver, ON Semiconductor

NB7NPQ1002M Features

  • Redriver
  • 3.3 V ± 0.3 V Power Supply
  • 5 Gbps & 10 Gbps Serial Link with Linear Amplifier
  • Device Supports USB 3.1 Gen 1 and USB 3.1 Gen 2 Data Rates
  • USB 3.1

PDF File Details

Part number:

NB7NPQ1002M

Manufacturer:

ON Semiconductor ↗

File Size:

176.46kb

Download:

📄 Datasheet

Description:

Dual channel / single port linear redriver. The NB7NPQ1002M is a high performance single

  • Port linear redriver designed for USB 3.1 Gen 1 and USB 3.1 Gen 2 applications t

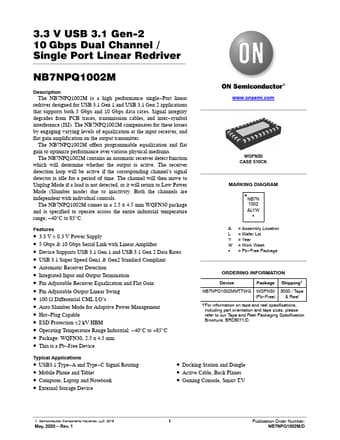

  • Datasheet Preview: NB7NPQ1002M 📥 Download PDF (176.46kb)
    Page 2 of NB7NPQ1002M Page 3 of NB7NPQ1002M

    NB7NPQ1002M Application

    • Applications that supports both 5 Gbps and 10 Gbps data rates. Signal integrity degrades from PCB traces, transmission cables, and inter
