NB7NPQ1004M Datasheet - ON Semiconductor

NB7NPQ1004M Dual Port Linear Redriver

The NB7NPQ1004M is a high performance 2 *Port linear redriver designed for USB 3.1 Gen 1 and USB 3.1 Gen 2 applications that supports both 5 Gbps and 10 Gbps data rates. Signal integrity degrades from PCB traces, transmission cables, and inter *symbol interference (ISI). The NB7NPQ1004.

NB7NPQ1004M Features

* 3.3 V ± 0.3 V Power Supply

* 5 Gbps & 10 Gbps Serial Link with Linear Amplifier

* Device Supports USB 3.1 Gen 1 and USB 3.1 Gen 2 Data Rates

* Automatic Receiver Detection

* Integrated Input and Output Termination

* Pin Adjustable Receiver Equa

NB7NPQ1004M-ONSemiconductor.pdf

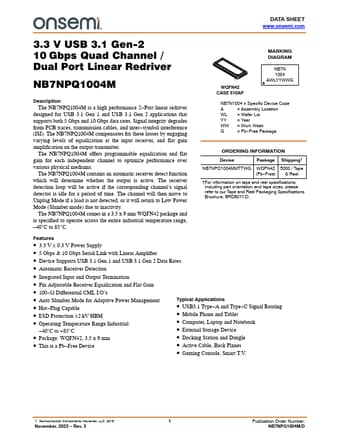

Preview of NB7NPQ1004M PDF
