NCD98011, NCD98010 Datasheet - ON Semiconductor

NCD98011 12-Bit Low Power SAR ADC

X2QFN Pin No. Name 1 CSN 2 OUT 3 CLK 4 VDD 5 GND 6 VCC 7 VINP 8 VINN Chip select (active low) Data Output (serialized) Clock Digital I/O supply voltage Common ground for all pins Analog supply and ADC reference voltage Analog input, positive signal Analog input, negative signal F.

NCD98011 Features

* a large input voltage range of 1.65 V to 3.3 V for various applications for both analog and digital supplies. The SPI

* compatible interface provides a straight

* forward data

* acquisition method. Features

* Nanowatt Power Consumption

* Fully Differential Input

NCD98010-ONSemiconductor.pdf

This datasheet PDF includes multiple part numbers: NCD98011, NCD98010. Please refer to the document for exact specifications by model.

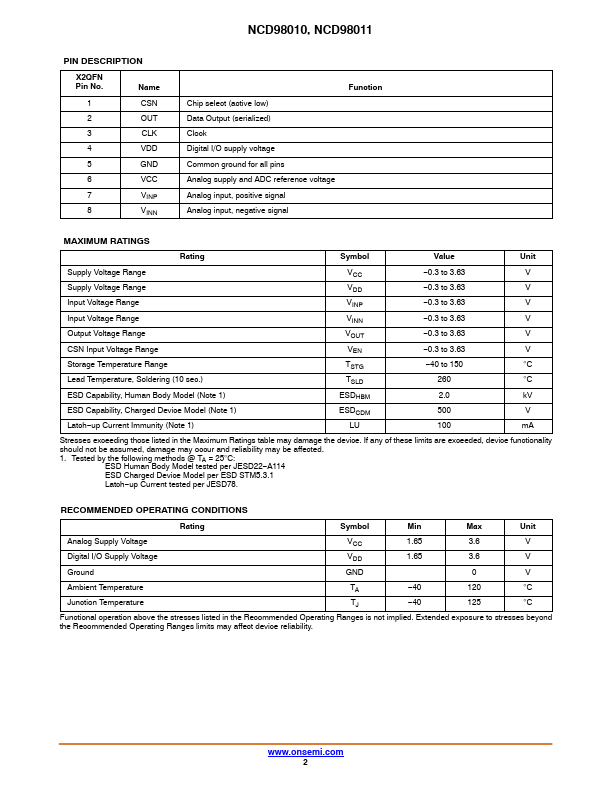

NCD98011 Datasheet Preview Page 2 NCD98011 Datasheet Preview Page 3

Datasheet Details

Part number:

NCD98011, NCD98010

Manufacturer:

ON Semiconductor ↗

File Size:

267.52 KB

Description:

12-bit low power sar adc.

Note:

This datasheet PDF includes multiple part numbers: NCD98011, NCD98010.
Please refer to the document for exact specifications by model.
