NCP1090 - Integrated IEEE 802.3af PoE-PD Interface Controller

ON Semiconductor

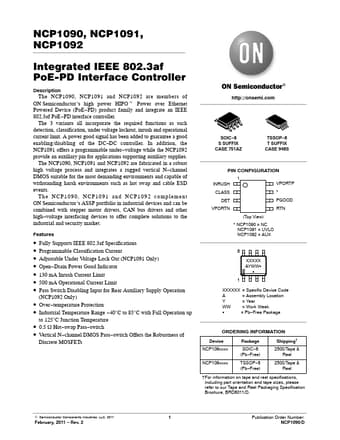

NCP1090 Datasheet Preview — Preview of NCP1090 PDF

Datasheet Details

Part number	NCP1090
Manufacturer	ON Semiconductor ↗
File Size	170.47 KB
Description	Integrated IEEE 802.3af PoE-PD Interface Controller
Datasheet	NCP1090-ONSemiconductor.pdf

NCP1090 Product details

Description

The NCP1090, NCP1091 and NCP1092 are members of ON Semiconductor’s high power HIPOt Power over Ethernet Powered Device (PoE PD) product family and integrate an IEEE 802.3af PoE PD interface controller. DC controller.

Features

Fully Supports IEEE 802.3af Specifications.
Programmable Classification Current.
Adjustable Under Voltage Lock Out (NCP1091 Only).
Open.
Drain Power Good Indicator.
130 mA Inrush Current Limit.
500 mA Operational Current Limit.
Pass Switch Disabling Input for Rear Auxiliary Supply Operation (NCP1092 Only).
Over.
temperature Protection.
Industrial Temperature Range.
40°C to 85°C with Full Opera.
