NCP1091, NCP1090 Datasheet - ON Semiconductor

NCP1091 Integrated IEEE 802.3af PoE-PD Interface Controller

The NCP1090, NCP1091 and NCP1092 are members of ON Semiconductor’s high power HIPOt Power over Ethernet Powered Device (PoE *PD) product family and integrate an IEEE 802.3af PoE *PD interface controller. The 3 variants all incorporate the required functions as such detection, classific.

NCP1091 Features

* Fully Supports IEEE 802.3af Specifications

* Programmable Classification Current

* Adjustable Under Voltage Lock Out (NCP1091 Only)

* Open

* Drain Power Good Indicator

* 130 mA Inrush Current Limit

* 500 mA Operational Current Limit

* P

NCP1090-ONSemiconductor.pdf

This datasheet PDF includes multiple part numbers: NCP1091, NCP1090. Please refer to the document for exact specifications by model.

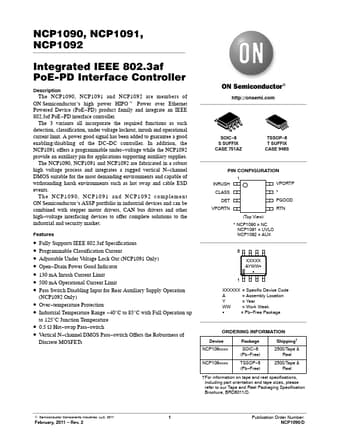

NCP1091 Datasheet Preview Page 2 NCP1091 Datasheet Preview Page 3

Datasheet Details

Part number:

NCP1091, NCP1090

Manufacturer:

ON Semiconductor ↗

File Size:

170.47 KB

Description:

Integrated ieee 802.3af poe-pd interface controller.

Note:

This datasheet PDF includes multiple part numbers: NCP1091, NCP1090.
Please refer to the document for exact specifications by model.
