NCP1093 - Integrated IEEE 802.3at PoE-PD Interface Controller

ON Semiconductor

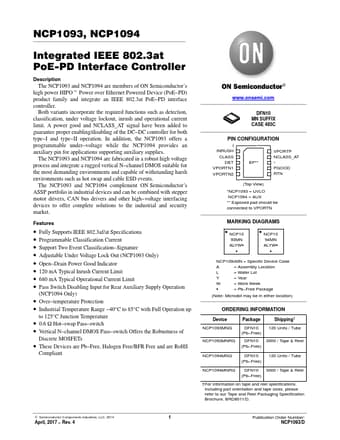

NCP1093 Datasheet Preview — Preview of NCP1093 PDF

Datasheet Details

Part number	NCP1093
Manufacturer	ON Semiconductor ↗
File Size	121.96 KB
Description	Integrated IEEE 802.3at PoE-PD Interface Controller
Datasheet	NCP1093-ONSemiconductor.pdf

NCP1093 Product details

Description

The NCP1093 and NCP1094 are members of ON Semiconductor’s high power HIPOt Power over Ethernet Powered Device (PoE PD) product family and integrate an IEEE 802.3at PoE PD interface controller. DC controller for both type I a

Features

Fully Supports IEEE 802.3af/at Specifications.
Programmable Classification Current.
Support Two Event Classification.
Signature.
Adjustable Under Voltage Lock Out (NCP1093 Only).
Open.
Drain Power Good Indicator.
120 mA Typical Inrush Current Limit.
680 mA Typical Operational Current Limit.
Pass Switch Disabling Input for Rear Auxiliary Supply Operation (NCP1094 Only).
Over.
temperature Protect.
