NCP1308 Datasheet - ON Semiconductor

NCP1308 PWM Current Mode Controller

NCP1308 PWM Current-Mode Controller for Free-Running Quasi-Resonant Operation The NCP1308 combines a true current mode modulator and a demagnetization detector to ensure full borderline/Critical Conduction Mode in any load/line conditions and minimum drain voltage switching (Quasi-Resonant operation). Due to its inherent skip cycle capability, the controller enters burst mode as soon as the power demand falls below a predetermined level. As this happens at low peak current, no audible noise can.

NCP1308_ONSemiconductor.pdf

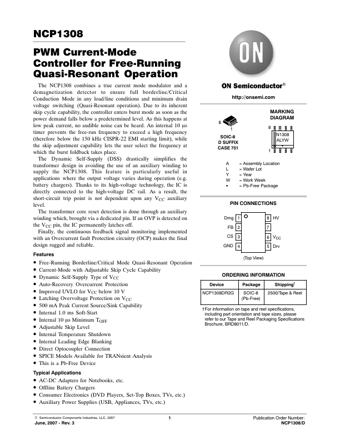

Preview of NCP1308 PDF
NCP1308 Datasheet Preview Page 2 NCP1308 Datasheet Preview Page 3

Datasheet Details

Part number:

NCP1308

Manufacturer:

ON Semiconductor ↗

File Size:

228.94 KB

Description:

Pwm current mode controller.
