NCP3800V Datasheet, Charger, ON Semiconductor

NCP3800V Features

  • Charger
  • High Efficiency Current Sense Circuit
  • Level 2 SMBus Controlled
  • 2/3/4 Cell Li+ Battery
  • 25 Volt Maximum Adapter Input Range
  • 5.4 V Charge

PDF File Details

Part number:

NCP3800V

Manufacturer:

ON Semiconductor ↗

File Size:

215.82kb

Download:

📄 Datasheet

Description:

Smbus level 2 battery charger. Function Pin Description ACOK 5 An open drain device indicates that status of the ac adaptor. Connecting a 10 kW resistor to ext

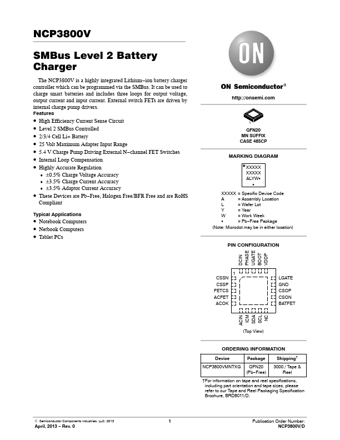

Datasheet Preview: NCP3800V 📥 Download PDF (215.82kb)
Page 2 of NCP3800V Page 3 of NCP3800V

NCP3800V Application

  • Applications
  • Notebook Computers
  • Netbook Computers
  • Tablet PCs http://onsemi.com 1 QFN20 MN SUFFIX CASE 485CP MARKING D
