NCP383 - Adjustable Current-Limiting Power-Distribution Switches

ON Semiconductor

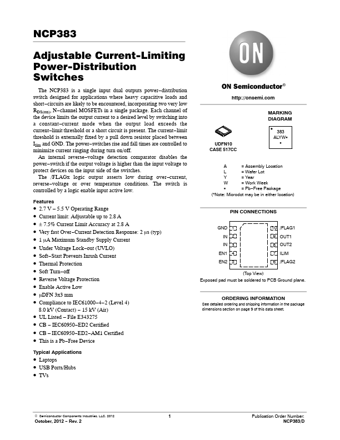

NCP383 Datasheet Preview — Preview of NCP383 PDF

Datasheet Details

Part number	NCP383
Manufacturer	ON Semiconductor ↗
File Size	139.94 KB
Description	Adjustable Current-Limiting Power-Distribution Switches
Datasheet	NCP383-ONSemiconductor.pdf

NCP383 Product details

Description

Pin Name Number Type GND 1P IN 2, 3 P /EN1 4 I /EN2 5 I /FLAG2 6 O ILIM OUT2 7O 8O OUT1 9O /FLAG1 PAD O 10 11 Therm Description Ground connection.Power switch input voltage; connect a 1 mF or greater ceramic capacitor from IN to GND as close as possible to the IC. If channel 1 is not used, do not leave this pin unconnected.

Features

2.7 V.
5.5 V Operating Range.
Current limit: Adjustable up to 2.8 A.
± 7.5% Current Limit Accuracy at 2.8 A.
Very fast Over.
Current Detection Response: 2 ms (typ).
1 mA Maximum Standby Supply Current.
Under Voltage Lock.
out (UVLO).
Soft.
Start Prevents Inrush Current.
Thermal Protection.
Soft Turn.
off.
Reverse Voltage Protection.
Enable Active Low.
