NCP582 - Low Noise 150mA CMOS LDO Regulator

NCP582 Description

NCP582 Ultra-Fast, Low Noise 150 mA CMOS LDO Regulator with Enable The NCP582 series of low dropout regulators are designed for portable battery power.
SOT. 563 Pin 1 2 3 SC. 82AB Pin 4 2 3 4. 5. 6 1 Symbol Vin GND Vout NC GND CE or CE Power supply inout volta.

NCP582 Features

* Ultra
* Low Dropout Voltage of 220 mV at 150 mA
* Low Output Noise of 30 mVrms without Noise Reduction Cap
* Excellent Line Regulation of 0.02%/V
* Excellent Load Regulation of 22 mV
* High Output Voltage Accuracy of "2%
* Low Iq Current of 75

📥 Download Datasheet

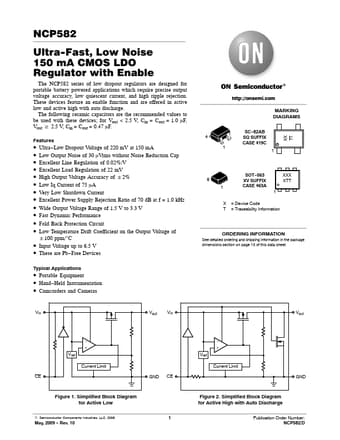

Preview of NCP582 PDF
datasheet Preview Page 2 datasheet Preview Page 3
