NCP583 - Ultra-Low Iq 150 mA CMOS LDO Regulator

ON Semiconductor

📥 Download Datasheet

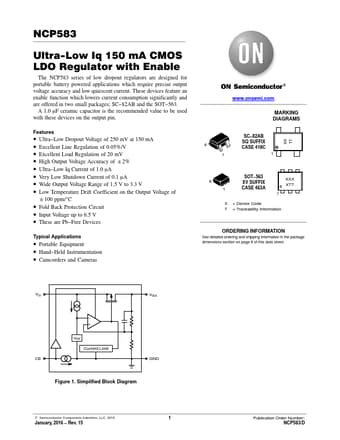

NCP583 Datasheet Preview — Preview of NCP583 PDF

Datasheet Details

Part number: NCP583
Manufacturer: ON Semiconductor ↗
File Size: 73.18 KB
Datasheet: NCP583_ONSemiconductor.pdf
Description: Ultra-Low Iq 150 mA CMOS LDO Regulator

NCP583 Product details

Description

SOT 563 Pin SC 82AB Pin 14 22 33 4 5 61 Symbol Vin GND Vout NC GND CE Power supply input voltage.Power supply ground.Regulated output voltage.No connect.Power supply ground.Chip enable pin.Description

Features

Ultra.
Low Dropout Voltage of 250 mV at 150 mA.
Excellent Line Regulation of 0.05%/V.
Excellent Load Regulation of 20 mV.
High Output Voltage Accuracy of "2%.
Ultra.
Low Iq Current of 1.0 mA.
Very Low Shutdown Current of 0.1 mA.
Wide Output Voltage Range of 1.5 V to 3.3 V.
Low Temperature Drift Coefficient on the Output Voltage of "100 ppm/°C.
Fold Back Protection Circuit.
Input Voltage up to.
