NCP603

300mA High Performance CMOS LDO Regulator

NCP603 Features

* such as low power operation, fast enable response time, and low dropout. The device is designed to be used with low cost ceramic capacitors and is packaged in the TSOP

* 5/SOT23

* 5. Features

* Output Voltage Options: Adjustable, 1.3 V, 1.5 V, 1.8 V, 2.5 V, 2.8 V, 3.0 V, 3.3 V, 3

NCP603 General Description

Pin No. Pin Name Description 1 Vin Positive Power Supply Input 2 GND Power Supply Ground; Device Substrate 3 ENABLE The Enable Input places the device into low

*power standby when pulled to logic low (< 0.4 V). Connect to Vin if the function is not used. 4 ADJ/NC Output Voltage A.

NCP603 Datasheet (166.01 KB)

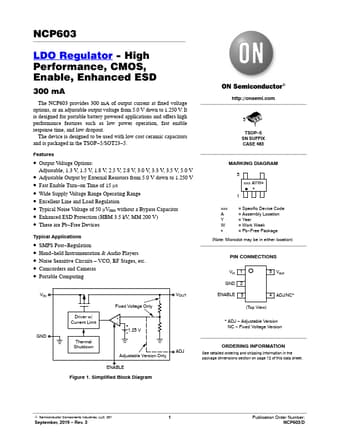

Preview of NCP603 PDF

Datasheet Details

Part number:

NCP603

Manufacturer:

ON Semiconductor ↗

File Size:

166.01 KB

Description:

300ma high performance cmos ldo regulator.
NCP603 LDO Regulator - High Performance, CMOS, Enable, Enhanced ESD 300 mA The NCP603 provides 300 mA of output current at fixed voltage options, or .
