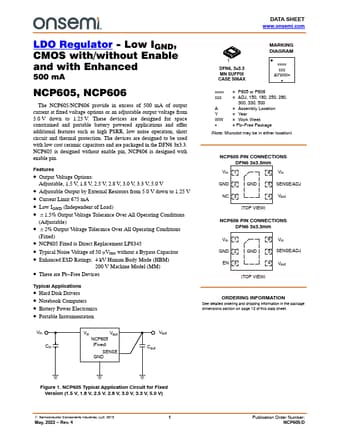

NCP606, NCP605 - CMOS LDO Regulator

ON Semiconductor

NCP606 Datasheet Preview — This datasheet PDF includes multiple part numbers: NCP606, NCP605. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	NCP606, NCP605
Manufacturer	ON Semiconductor ↗
File Size	214.36 KB
Description	CMOS LDO Regulator
Datasheet	NCP605_ONSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: NCP606, NCP605. Please refer to the document for exact specifications by model.

NCP606 Product details

Description

Pin No. 2 GND Power Supply Ground 3 NC/EN NCP605: This Pin is Not Connected NCP606: This Pin is Enable Input, Active HIGH 4 Vout Regulated Output Voltage 5 SENSE/ADJ Output Voltage Sense Input Fixed Version: Connect Directly to Output Capacitor Adjustable Version: Connect to Middle Point of External Resistor Divider 6 Vin Positive Power Supply Input EPAD GND Exposed Pad is Connected to Ground Pins 1

Features

such as high PSRR, low noise operation, short circuit and thermal protection. The devices are designed to be used with low cost ceramic capacitors and are packaged in the DFN6 3x3.3. NCP605 is designed without enable pin, NCP606 is designed with enable pin. Features.
Output Voltage Options: Adjustable, 1.5 V, 1.8 V, 2.5 V, 2.8 V, 3.0 V, 3.3 V, 5.0 V.
Adjustable Output by External Resistors from 5.0 V down to 1.25 V.
Current Limit 675 mA.
Low IGND (Independent.
