NCV1034

100V Synchronous PWM Buck Controller

NCV1034 Features

* include user programmable undervoltage lockout and hiccup current limit. Features

* High Voltage Operating up to 100 V

* Programmable Switching Frequency up to 500 kHz

* 2 A Output Drive Capability

* Precision Reference Voltage (1.25 V)

* Programmable Soft

NCV1034 General Description

The NCV1034 is a high voltage PWM controller designed for high performance synchronous Buck DC/DC applications with input voltages up to 100 V. The NCV1034 drives a pair of external N

*MOSFETs. The switching frequency is programmable from 25 kHz up to 500 kHz allowing the flexibility to tune .

NCV1034 Datasheet (263.21 KB)

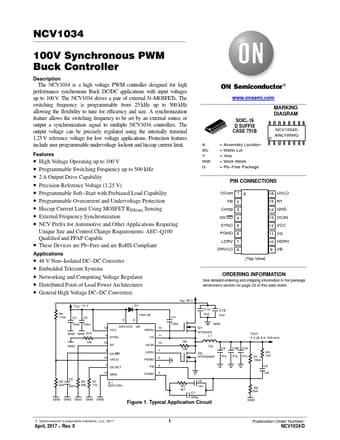

Preview of NCV1034 PDF

Datasheet Details

Part number:

NCV1034

Manufacturer:

ON Semiconductor ↗

File Size:

263.21 KB

Description:

100v synchronous pwm buck controller.
