NCV1060

Automotive High-Voltage Switcher

NCV1060 Features

* include: a timer to detect an overload or a short

* circuit event, Overvoltage Protection with auto

* recovery and AC input line voltage detection (A version). The ON proprietary integrated Over Power Protection (OPP) lets you harness the maximum delivered power without affecting your st

NCV1060 General Description

Pin No SOIC 10 SOIC 16 Pin Name Function 1 1

*4 GND The IC Ground 2 5 VCC Powers the Internal Circuitry 3 6 LIM/OPP Ipeak Set / Over Power Limitation 4 7 FB Feedback Signal Input 5 8 Comp Compensation 6

*10 9

*12 13

*16 Drain Drain Connection.

NCV1060 Datasheet (569.76 KB)

Preview of NCV1060 PDF

Datasheet Details

Part number:

NCV1060

Manufacturer:

ON Semiconductor ↗

File Size:

569.76 KB

Description:

Automotive high-voltage switcher.

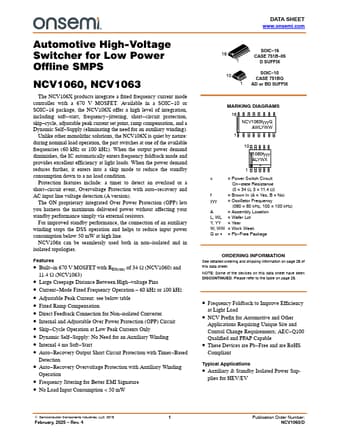

Automotive High-Voltage Switcher for Low Power Offline SMPS NCV1060, NCV1063 The NCV106X products integrate a fixed frequency current mode controller .
